Tileplot of Shapley values for interval-valued data.

Source: R/plots_Shapley.r
plot_tile_int_Shapley.Rd

Tileplot of Shapley values for interval-valued data.

Usage

plot_tile_int_Shapley(
  shapley,
  outliers = NULL,
  rotate_x = TRUE,
  abbrev.var = FALSE,
  abbrev.obs = FALSE,
  sort.var = FALSE,
  sort.obs = FALSE,
  show_values = FALSE
)

Arguments

shapley

A \(n \times p\) matrix containing the Shapley values of \(n\) observations and \(p\) variables.

outliers

A list containing the outliers' names as returned by int_outliers. If outliers is not NULL (default), only the outliers are highlighted in the plot.

rotate_x

Logical. If TRUE (default), the x-axis labels are rotated.

abbrev.var

Integer. If abbrev.var \(> 0\), column names are abbreviated using abbreviate with minlenght = abrev.var.

abbrev.obs

Integer. If abbrev.obs \(> 0\), row names are abbreviated using abbreviate with minlenght = abrev.obs.

sort.var

Logical. If TRUE, variables are sorted according to the distance.

sort.obs

Logical. If TRUE, observations are sorted according to their squared Interval-Mahalanobis distance.

show_values

Logical. If TRUE, the Shapley values are displayed in each tile.

Value

Returns a tileplot that displays the Shapley values (int_Shapley) for each observation and variable. Optionally, only the outliers are highlighted in the plot.

References

Adapted from package ShapleyOutlier (https://CRAN.R-project.org/package=ShapleyOutlier).

Examples

# Create intData object
data(creditcard)
credit_card_int <- creditcard$intData

# Estimate the mean and covariance matrix
credit_card_IMCD <- IMCD(credit_card_int,
                         m = floor(nrow(credit_card_int)*0.75),
                         cutoff = "farness",
                         cutoff_lvl = 0.9)

# Detect outliers using farness cutoff
credit_card_outliers <- int_outliers(credit_card_IMCD$robust_dist,
                                     cutoff = "farness",
                                     cutoff_lvl = 0.9)

# Compute Shapley values
credit_card_shapley <- int_Shapley(credit_card_int,
                                   mean_c = credit_card_IMCD$mean_IMCD_c,
                                   mean_r = credit_card_IMCD$mean_IMCD_r,
                                   cov = credit_card_IMCD$cov_IMCD)

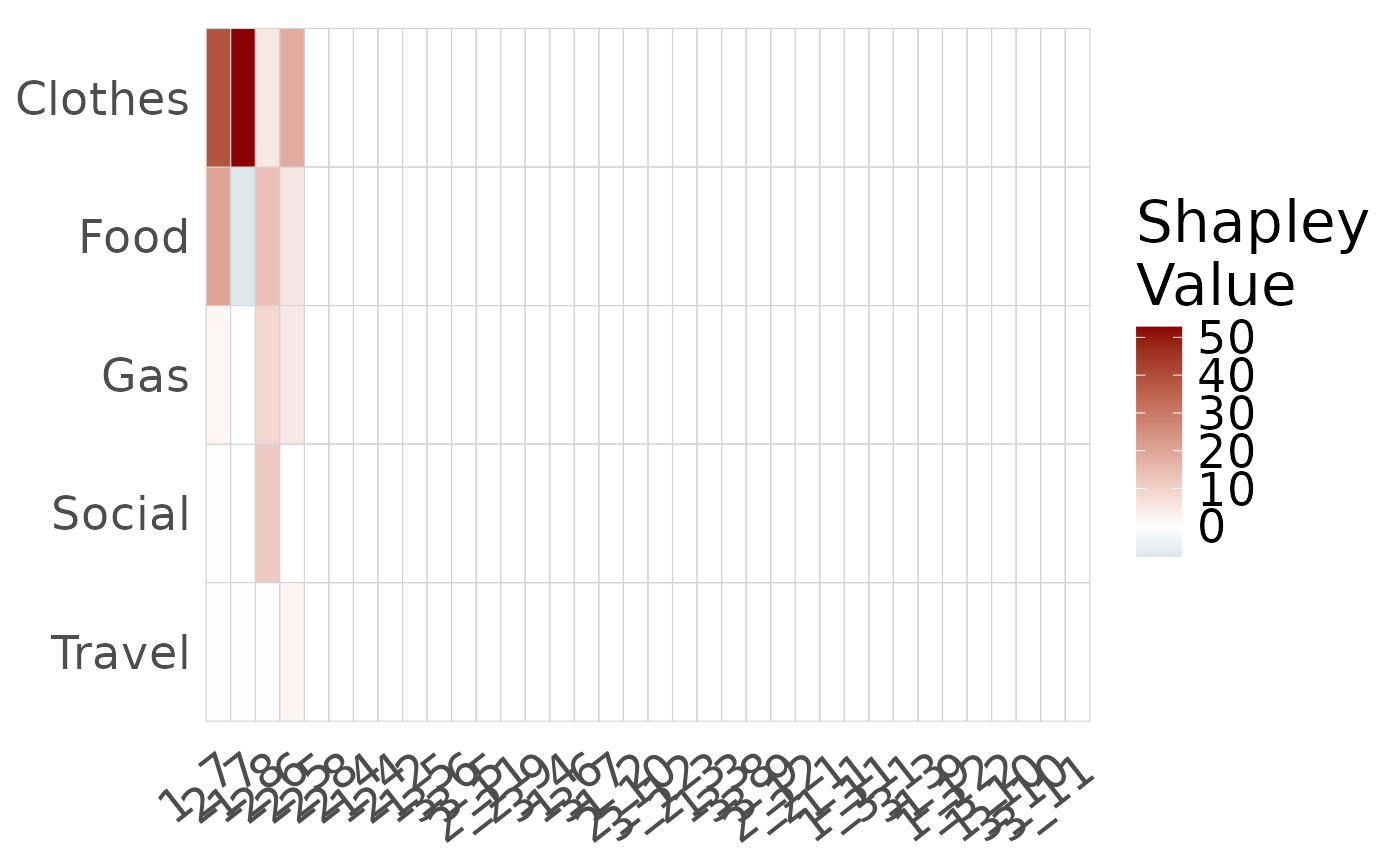

plot_tile_int_Shapley(credit_card_shapley,
                     outliers = credit_card_outliers,
                     sort.var = TRUE,
                     sort.obs = TRUE)
